Pachamama Vans

System Platform

Cross struts 4 black struts (40 cm apart) 5 black struts (30 cm spacing) 4 silver struts (40 cm apart) 5 silver struts (30 cm spacing) Without (platform angle left and right only)

€ 129,00

9 left

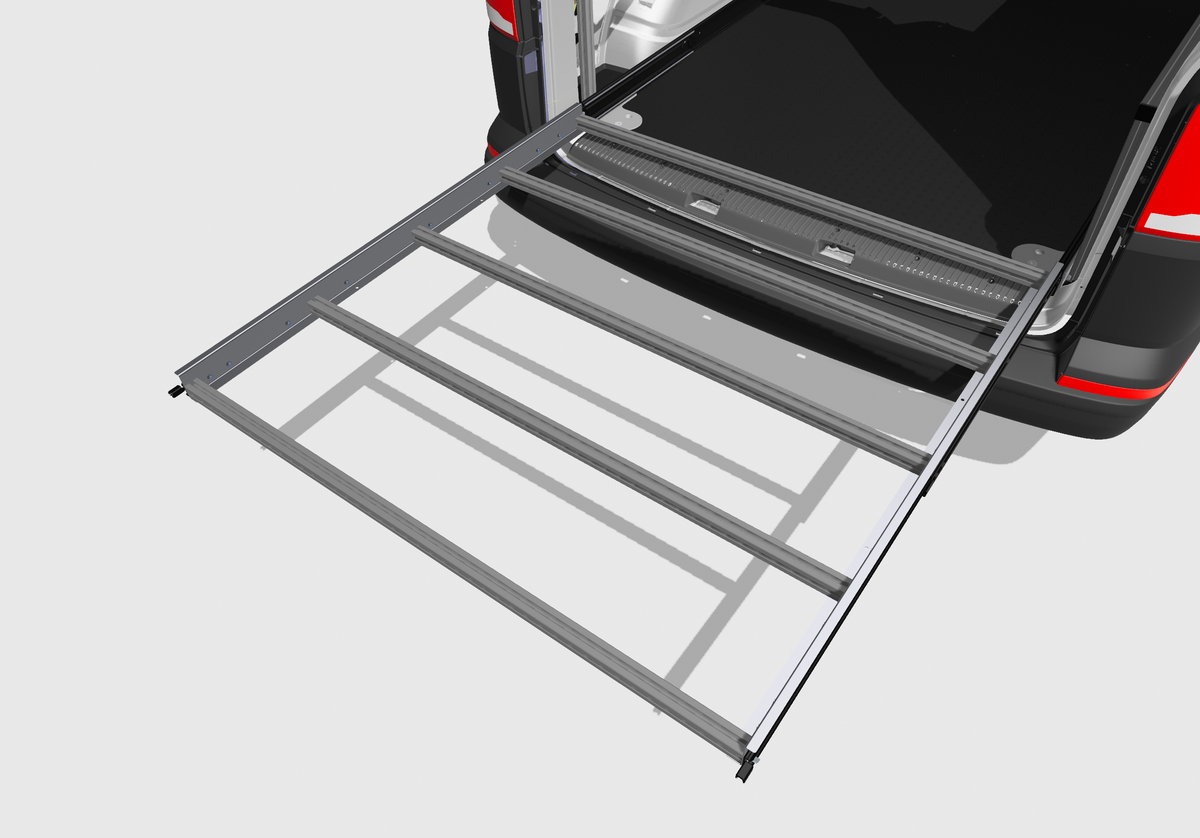

For our DIY pull-out system for VW T5 and T6, we offer a platform made of high-quality platform brackets and system profiles.

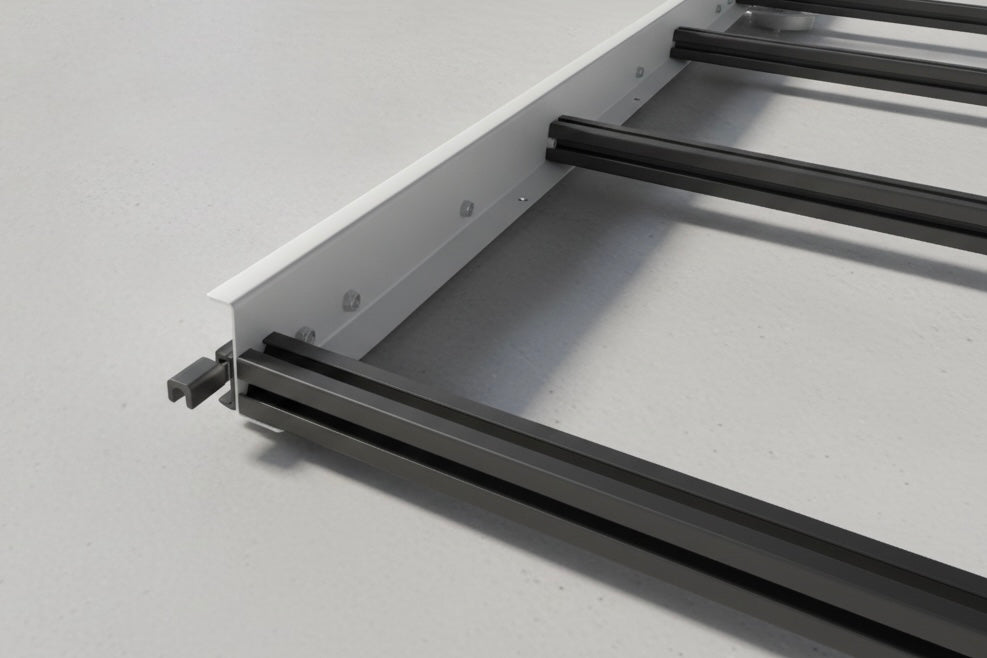

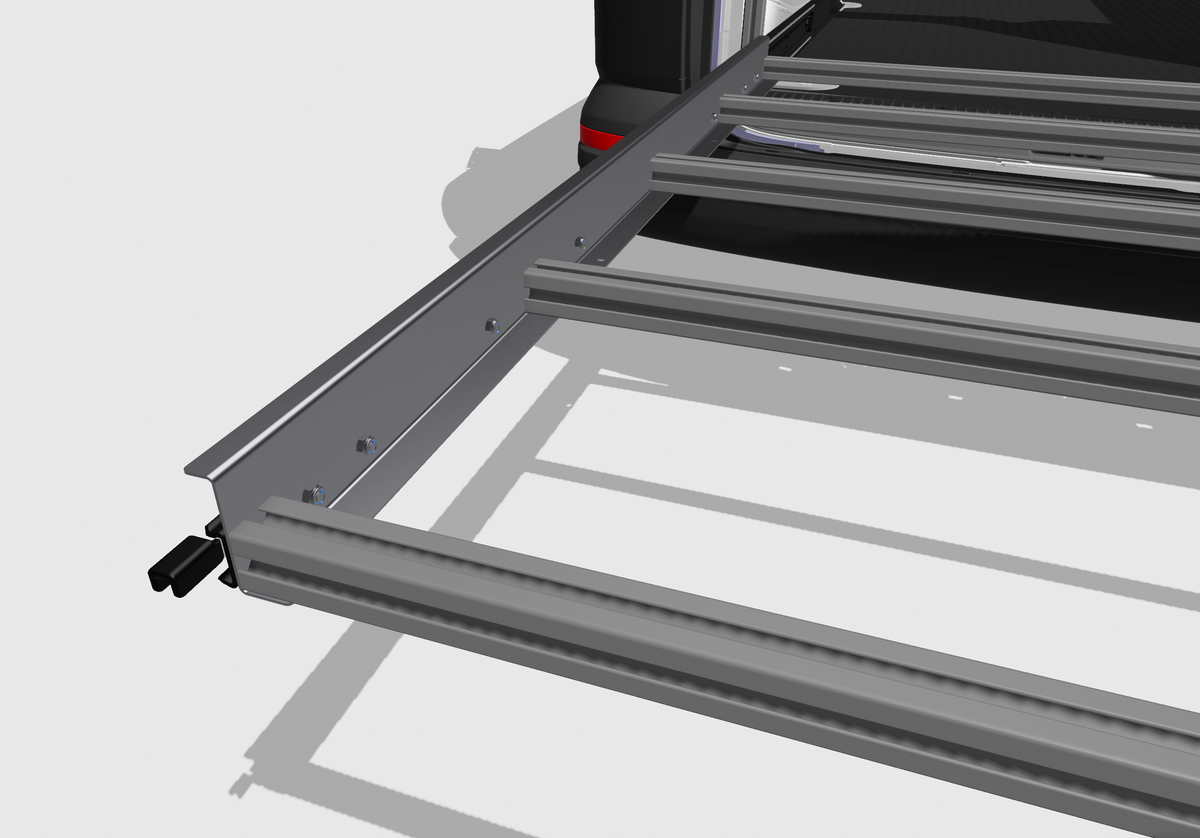

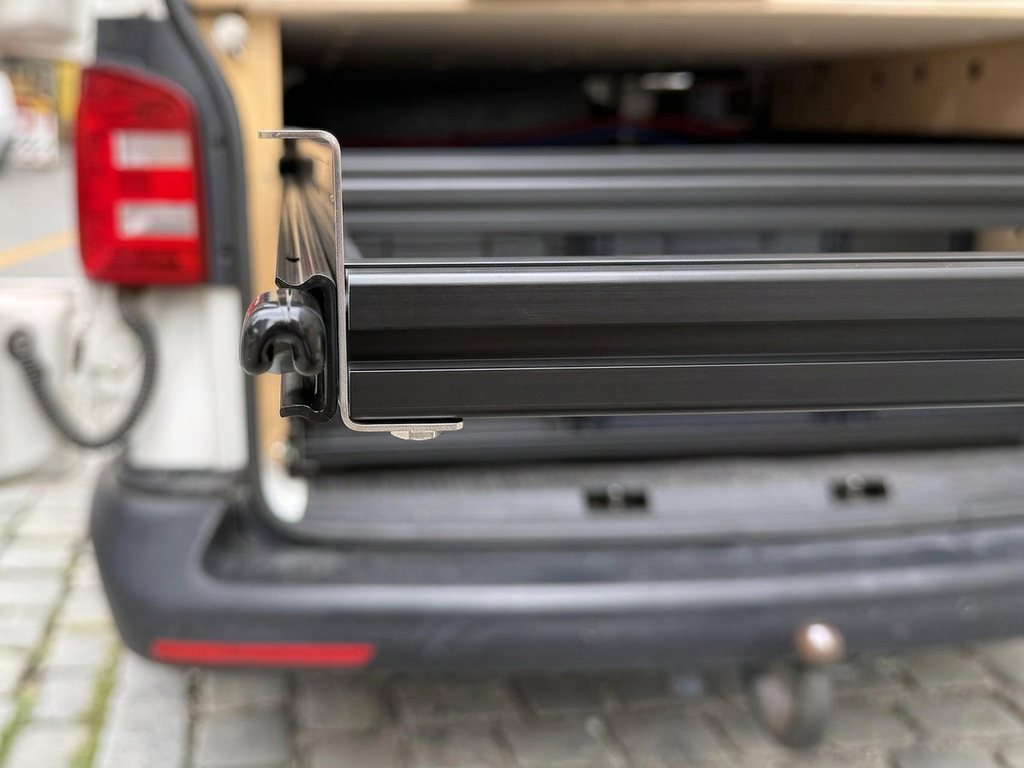

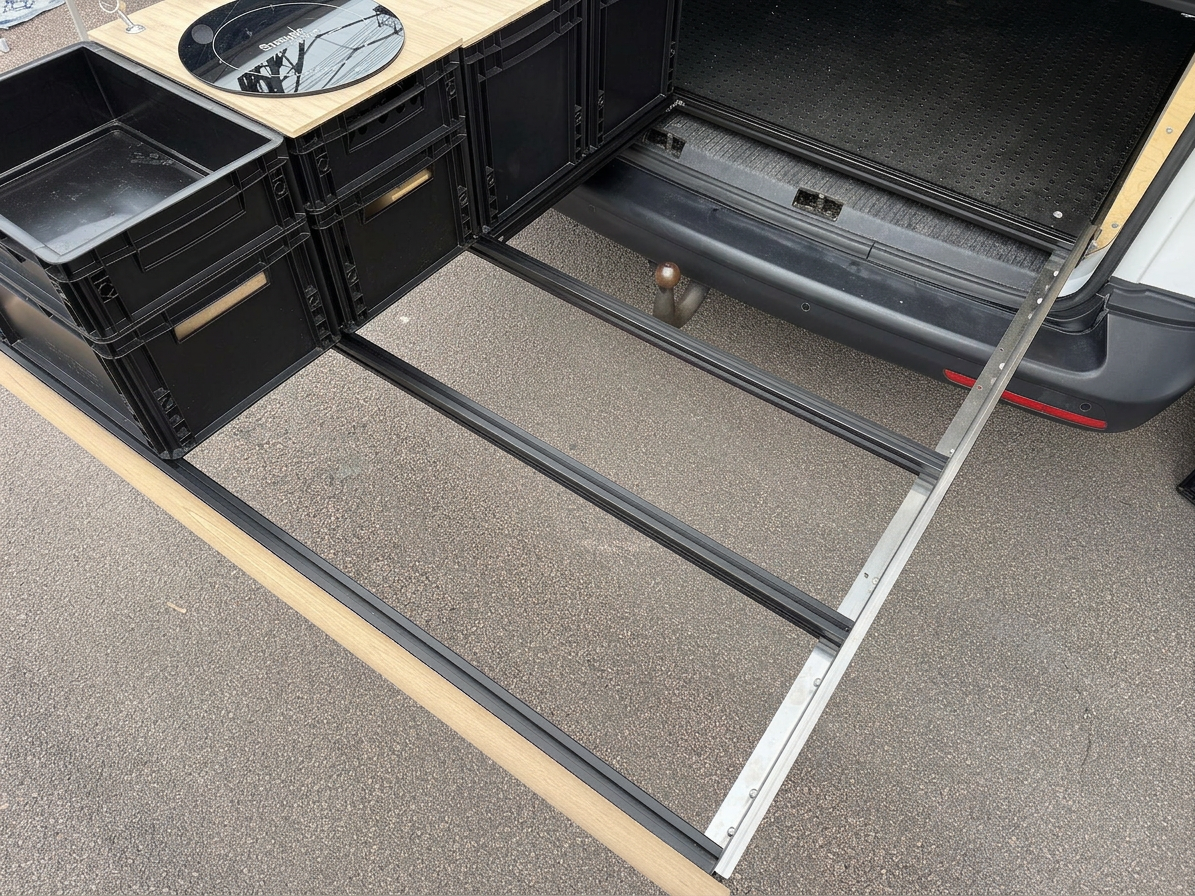

The platform brackets are bent over the pull-outs, protecting them from falling dirt. The pre-drilled holes are used for screwing on system profiles and are positioned so that Euroboxes can rest crosswise or lengthwise with their edges without slipping. This creates an extremely light yet stable pull-out for your van.

The profiles are already cut to size to match our pull-out brackets for VW T5/T6; you only need to screw them to the platform brackets. The necessary mounting material is included, made of rust-free stainless steel, of course.

The platform brackets can also be installed in other vehicles in conjunction with the heavy-duty pull-outs available from us. We are happy to supply the system profiles in the width you require.

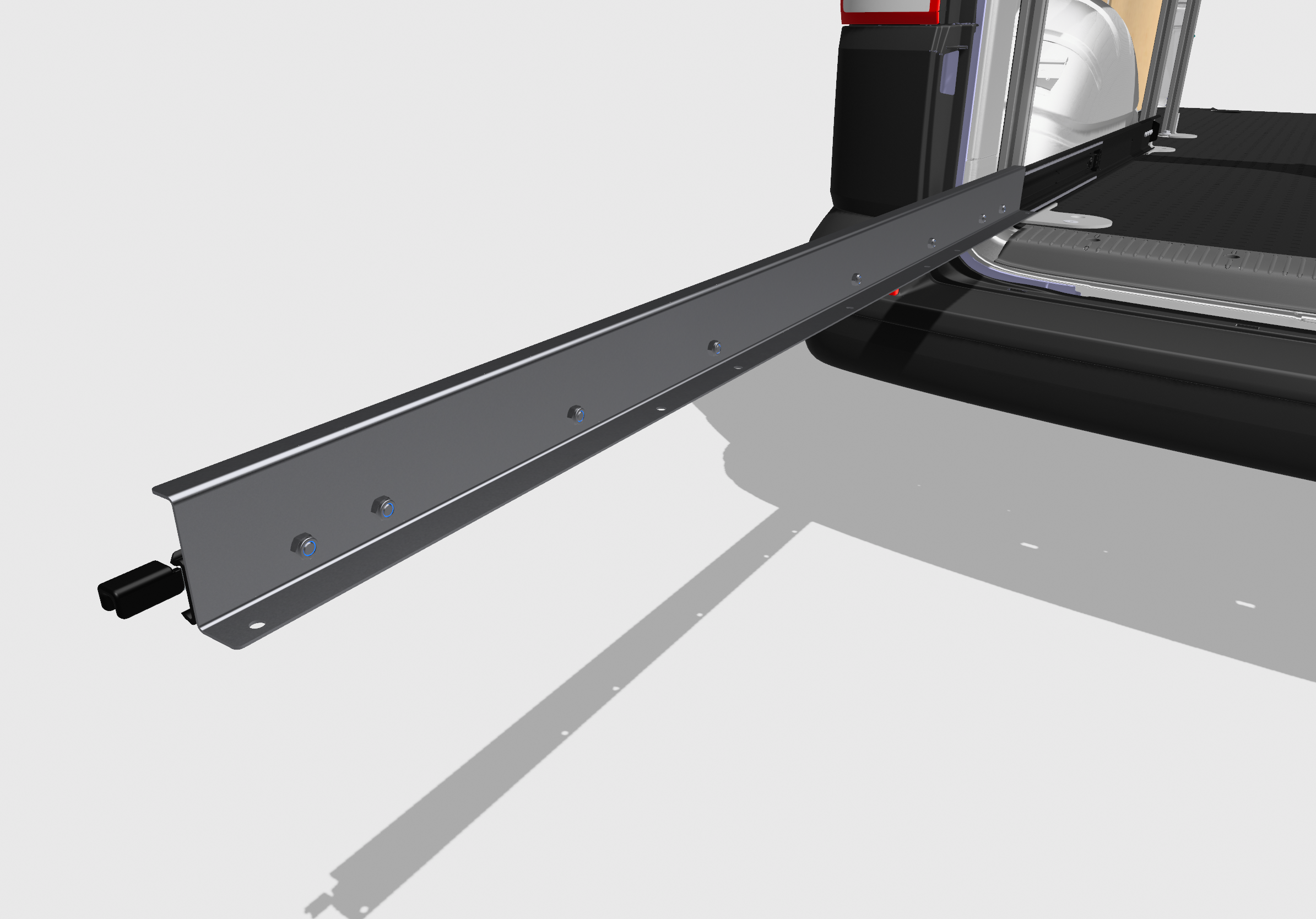

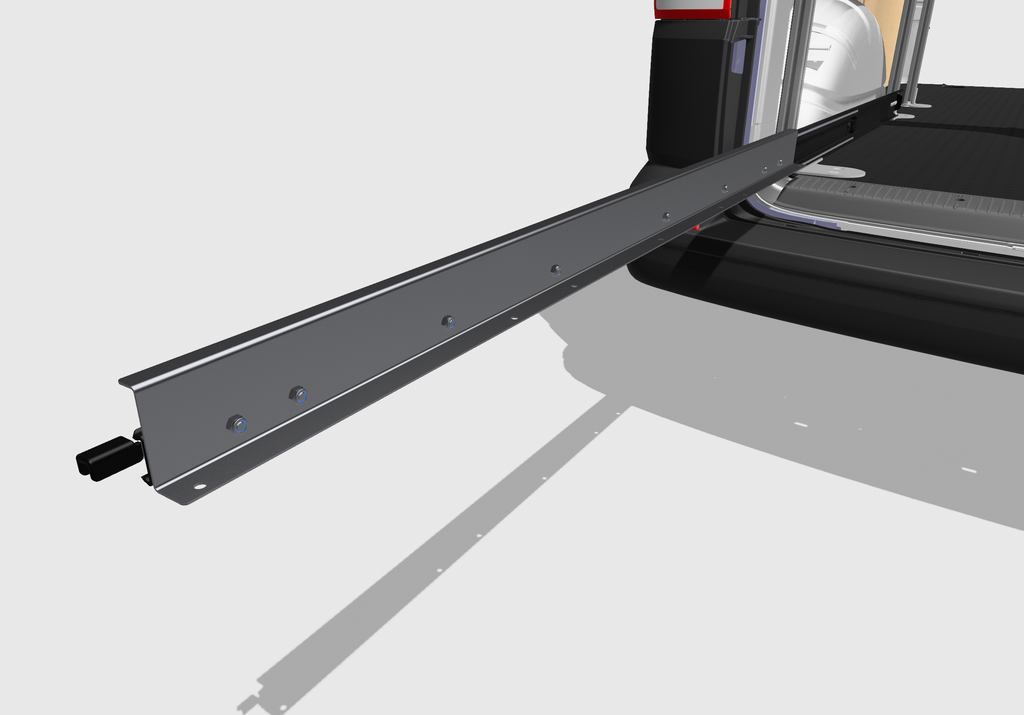

The pull-out rails shown are available separately here.

Platform brackets:

Material: Stainless steel
Material: Silver
Material of fastening hardware: Stainless steel

System profiles (cross braces):

Material: Aluminum
Color: Optionally matte black or matte silver anodized
Dimensions: 30 grid (30 x 30 mm)
Length/width of the assembled platform: 120 x 120 cm

To order the system platform in a different width, add the platform brackets without profiles to your cart and order the desired quantity of profiles in your preferred width.
